Fire Water Tank Project | 436m³ GFS Tank

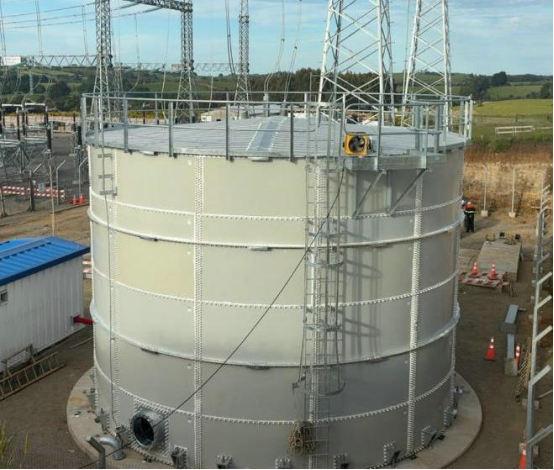

436 m³ GFS Fire Water Tank in Ancud, Chile

Wansheng supplied one set of GFS fire water tank for a fire water storage project in Ancud, Chile. The tank was designed with a diameter of 9.17 m and a height of 6.6 m, providing a geometric volume of 436 m³ and an effective storage volume of 396 m³.

This project required a reliable fire water storage tank suitable for local wind and seismic conditions. According to the project requirements, Wansheng provided a standard GFS fire water tank solution with customized steel plate thickness, tank color and installation accessories.

Project Information

Project Requirements

The customer needed a fire water storage tank that could meet the structural requirements of the local project site, including:

• Wind load: 50 m/s

• Seismic zone: D

• Seismic fortification intensity: 9 degrees

• Customized steel plate thickness: 6 mm

• Customized tank color: RAL7035

• Customized accessories: anchor chair and shear key



Wansheng Solution

Based on the project conditions, Wansheng supplied a customized GFS fire water tank with 6 mm steel plates and RAL7035 enameled steel panels. The tank was also equipped with anchor chairs and shear keys to support the structural design requirements under high wind load and seismic conditions.

The bolted GFS tank structure allowed the project team to complete local self-installation, helping improve installation flexibility for the overseas project.

Project Highlights

This project demonstrates Wansheng’s ability to provide customized GFS fire water tank solutions for international projects with specific structural and environmental requirements.

Key highlights include:

• Customized 436 m³ fire water storage capacity

• Designed for 50 m/s wind load

• Suitable for seismic zone D project conditions

• 6 mm customized steel plates

• RAL7035 enameled steel plate color

• Customized anchor chair and shear key

• Suitable for local self-installation

Application Value

The completed GFS fire water tank provides stable fire water storage capacity for the Chile project. With corrosion-resistant enameled steel panels, a modular bolted structure and customized accessories, the tank is suitable for long-term fire water storage in industrial, municipal and commercial projects.

For overseas fire water storage projects, Wansheng can provide customized tank design, manufacturing and project support according to tank volume, site conditions, wind load, seismic requirements, color preference and installation method.
