931m³ GFS Wastewater Tank for an Industrial Malting Plant
Wansheng supplied one set of GFS wastewater tank for a local malting plant in India. The client acts as both the purchaser and the end user, operating its own wastewater treatment line with reverse osmosis technology.

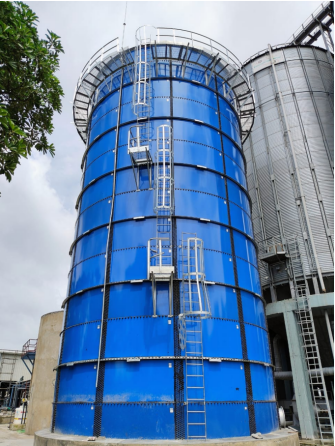

The supplied tank has a size of Φ8.4 × 16.8 m and a volume of 931 m³. According to the client’s wastewater storage requirements, each GFS panel was fitted with additional edge protection treatment to help reduce corrosion risk caused by wastewater exposure.
Project Information
| Item | Details |
|---|---|
| Project Name | Wastewater Tank in India |
| Location | India |
| Application | Industrial wastewater treatment |
| End User | Local malting plant |
| Tank Type | GFS wastewater tank |
| Tank Size | Φ8.4 × 16.8 m |
| Tank Volume | 931 m³ |
| Treatment Process | Wastewater treatment line with reverse osmosis technology |
| Construction Method | On-site assembly with remote technical guidance |
| Production Lead Time | Within 28 days |
Project Background
The client is a local malting plant in India with its own wastewater treatment system. For this project, the client required a reliable wastewater storage tank to support its treatment line using reverse osmosis technology.
Because wastewater can be more corrosive than ordinary water, the client paid close attention to tank quality, corrosion protection, installation process, delivery time and water testing.
Wansheng Solution
Based on the project requirements, Wansheng supplied a customized GFS wastewater tank with additional edge protection treatment on each panel. This design helps improve protection at the panel edges and reduce the possibility of steel plate corrosion caused by wastewater contact.
During the design confirmation stage, Wansheng worked closely with the client to finalize the tank parameters, considering local wind speed, geographical conditions and wastewater treatment requirements.
The tank was designed for on-site assembly, with remote technical guidance provided by the factory to support the local installation team during assembly, inspection and commissioning.
Project Highlights
This project reflects Wansheng’s ability to provide customized GFS wastewater tank solutions for industrial wastewater treatment applications.
Key highlights include:
931 m³ GFS wastewater tank
Used in a malting plant wastewater treatment line
Suitable for reverse osmosis wastewater treatment process
Additional edge protection treatment for each GFS panel
Designed according to local wind speed and site conditions
Production lead time controlled within 28 days
On-site assembly supported by remote technical guidance
Flexible project support for first-time cooperation
Application Value
The completed GFS wastewater tank provides stable storage capacity for the client’s wastewater treatment line. With corrosion-resistant glass fused to steel panels, customized edge protection and modular bolted construction, the tank is suitable for industrial wastewater projects where durability, installation efficiency and long-term operation are important.
For industrial plants, food processing facilities, breweries, malting plants and wastewater treatment stations, Wansheng can provide customized GFS tank solutions based on wastewater characteristics, tank volume, site conditions and installation requirements.
