GFS Tanks with Double Membrane Roof Used in Biogas Engineering Projects

Glass-fused-to-steel Tank refer to glass-lined storage tanks, also known as some GFS storage tanks.
Glass is melted with steel to enhance its performance.
Fusion is important because it is single steel, and it is the same for the environment.
When the fusion of steel and glass is completed, the strength increases and the wear resistance decreases, as does the suitable pH value scaffold for alkaline solution.
Such ponds are generally considered to be one of the important components of environmental technologies, such as anaerobic digestion tanks, wastewater treatment and fireproof storage.
They are industrial water storage tanks.
The glass fused on the stainless steel tank panel is coated with glass enamel inside and outside.
The enamel has a strong, bright, smooth silicate coating.

Share:

Advantages of our Sludge Storage Tank

1. Short construction period and low cost.

2. Excellent corrosion resistance, service life> 30 years.

3. Easy to install, no need for large-scale installation equipment or very skilled worker.

4. The tank volume can be expanded according to your requirements.

5. Removable, relocated and reinstalled.

6. Exquisite appearance, the color of the tank can be customized.

7. Modular operation, on-site assembly.

8. Controllable quality, suitable for different climates.

9. Industrialized production, qualified in quality inspection.

10. Can produce any size, from 50m to 10000m for your choice

Product Parameters

Itemspecs
Coating ColorStandard color :dark blue and dark green,or customized
Coating Thickness0.25~0.40mm
Acid and alkali resistanceStandard coating:PH3~11,special coating:PH1~14
Adhesive force3450N/cm
ElasticityAbout 500KN/mm
Hardness6.0(Mohs)
Life≥30years
Holiday test1500v
PermeabilityGas and liquids impermeable
CleaningEasy to clean,smooth, inert, glossy, anti-stick
Corrosion resistanceExcellent for wastewater, concentrated salt water, seawater, high sulfur crude oil, salt spray ,organic and inorganic compounds


Major achievements in research and development of glaze technology
For applications in different fields, the company has also developed food-grade glazes, bacteriostatic glazes, high corrosion-resistant and wear-resistant glazes to apply to different solution media. Research and development of acid and alkali resistance and corrosion resistance of special face glaze, acid-resistant AA titanium dioxide glaze.



Comparison of GFSTank and other  tanks

ItemConcrete TankCarbon steel tankGFS TanksLIPP tank
Beautiful degreeLowLowHighHigh
Temperature adaptionA stressAdapt to low temperatureAdapt to low temperatureAdapt to low temperature
ShapeAny shapeRound shapeRound shapeRound shape
Ground Or undergroundBothGroundBothGround
Corrosion resistanceNormalNo resistance to corrosionGoodNot
Abrasion resistanceGoodBadGoodBad
Easy to cleanBadBadGoodNormal
Easy to repairNormalGoodGoodBad
Weight (T)HeavyLittle heavyLightLittle light
Tank costMiddleHighLowLow
Tank temperature protectNoNeedNeedNeed
Anti-corrosive TreatmentNoNeedNoNeed
Annual anti-corrosive costNoHigh costNoHigh cost
Corrosion resistanceNormalNoSuperiorNormal
Abrasion resistanceGoodBadGoodBad
Service life30103025

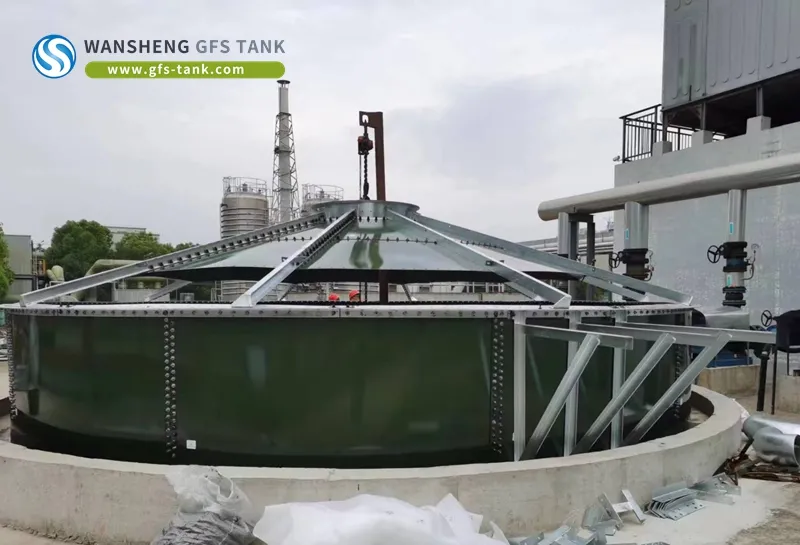

Features of Sludge Storage Tank Roof
Glass-Fused-to-Steel roof with external/internal beams
- air-tightness, GFS/enamel roof is suitable for anaerobic digestion condition
- cone shape roof with external/internal beams according to the requirement
- optimum material same as tank sidewal


Design Standard of Sludge Storage Tank

Our professional engineers design according to rigorous international standards to ensure the tank quality. Our tanks are conform to following standards below:

NSF61
