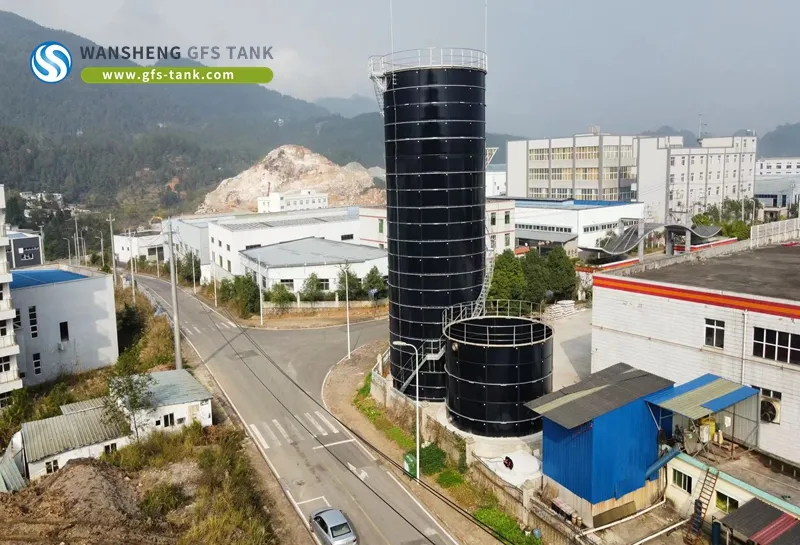

GFS Tank Used as IC Reactor

GLASS LINED STEEL TANKS /GFS TANKS are assembled on-site from special enamel steel plates, stirrups, self-locking bolts, sealants and other accessories. The raw material of the steel plate is a titanium-containing enamel hot-rolled plate developed in cooperation with domestic first-tier steel companies, which is formed using fast and low-cost on-site assembly technology.
After the enameled steel plate is fired at a high temperature of 820°-930°, the enamel will fuse with the surface of the steel plate to form a strong and chemically inert inorganic coating with excellent corrosion resistance.
The enamel process is currently the most advanced coating anti-corrosion technology in the steel storage tank market.

Share:

Glass Fused To Steel Tank Advantages

Short construction period, cost-effective tank solution
Superior corrosion resistance, service life is more than 30 years
Easy to install, no need for big installation equipment and/or very skilled labor, the quality is highly guaranteed.
Tank volume can be easily expanded or can be dismantled, removed , and relocated
Elegant appearance, tank color can be customized
Perfectly suited for almost all climates with weather extremes~

Glass Fused To Steel Tank Specs

ItemSpecs
Coating colorStandard color: dark blue\dark green\ white or customized
A standard steel plate sizeeffective size 2400mm x 1200 mm
Steel plates thickness3-12mm, depending on the diameter & height
Coating thickness0.25-0.40mm
Acid and alkali resistancestandard coating :PH3 - PH11\ special coating:PH1 - PH14
Adhesion3,450N/cm
Elasticaround 500KN/mm(same as steel sheet)
Hardness6.0 Mohs
Service life≥30 years
Holiday test>1500 V
PermeabilityGas and liquid impermeable
cleaningeasy to clean, smooth, inert, glossy, anti-stick
Corrosion resistanceexcellent for waster water, concentrated salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds
